Complete rainwater harvesting gravity system control kit

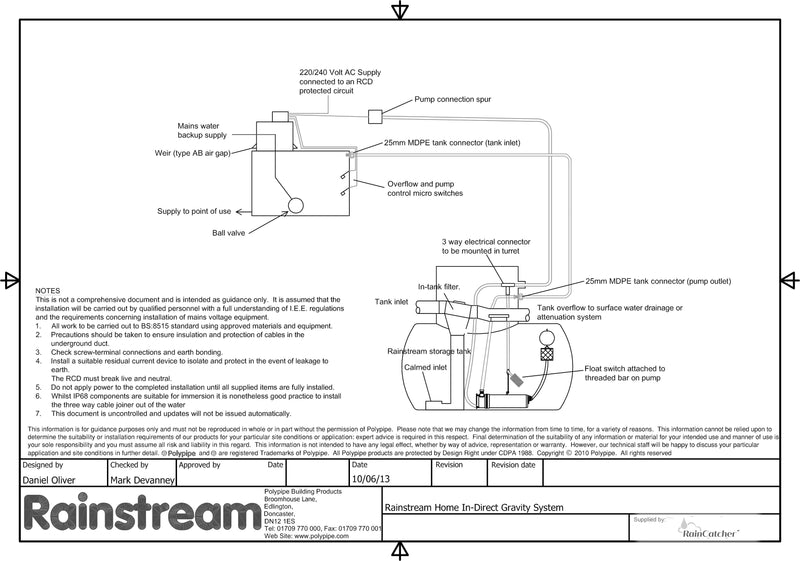

Pump Pack 5 Indirect Gravity system
15mtr cable - Rwh.rh.ps.15
Comes with:

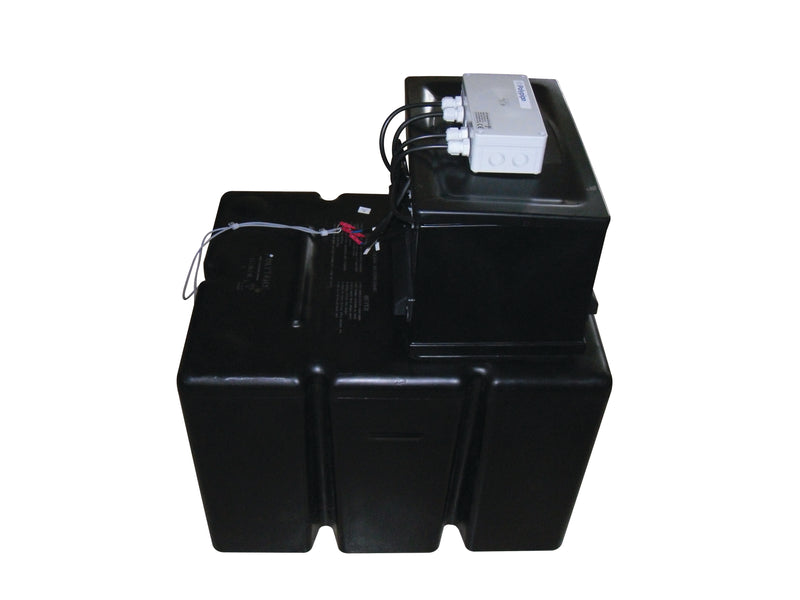

- Completely Modified Header Tank - suitable for an indirect, gravity header tank system - in accordance with BS8515 and current water regulations
2. Steel pump X-AJE80PUK - Automatic - Which is a professional quality stainless steel jet pump, submersible water pumps, self-priming, with electronic flow control. Materials - Fibre-glass reinforced technopolymer inner flanges and rear casing, stainless steel front casing, silicon carbide seal, aluminium bearing slot.
This pump can function either submerged or above water, but is primarily designed for submerged applications. The professional build quality incorporates high quality steel bearings in brass mounting, ceramic-graphite seals, reliable electronics, and strong internal components, making it suitable for more demanding applications and high duty cycles such as below ground tanks, commercial or irrigation use. The electronic flow control responds to the pressure in the outlet pipe. As the user draws water by opening a tap or similar, the pump starts, turn the tap off and the pump cuts out automatically. This pump is designed for pumping clean water only.
Specifications
Pump Body: Stainless Steel Aisi 304
Motor Body: Stainless Steel Aisi 304
Back Bracket: Stainless Steel Aisi 304
Shaft: Stainless Steel Aisi 416
Diffuser: Techno-polymer
Mechanical Seal: Silicon Carbide
Class F Cooled Motor and Service S1 with thermal protection
Electric power cable: H07 RN-F 10mt. with UK plug
Protection class: IP 68
Inlet: 1"
Oultet: 11/4"
Pumped liquid temperature: +2 Degrees C to +37 Degrees C (18 to 70 Farhenheit)
The X-AJE80P SteelPump is perfect for pumping rainwater and clear water. It is a high quality jet-pump, with stainless steel motor body. It is submersible and self-priming, with electronic flow control (ie will automatically pump on demand). The electronic flow control responds to the pressure in the outlet pipe. As the user draws water by opening a tap or similar, the pump starts, turn it off and the pump cuts out automatically.

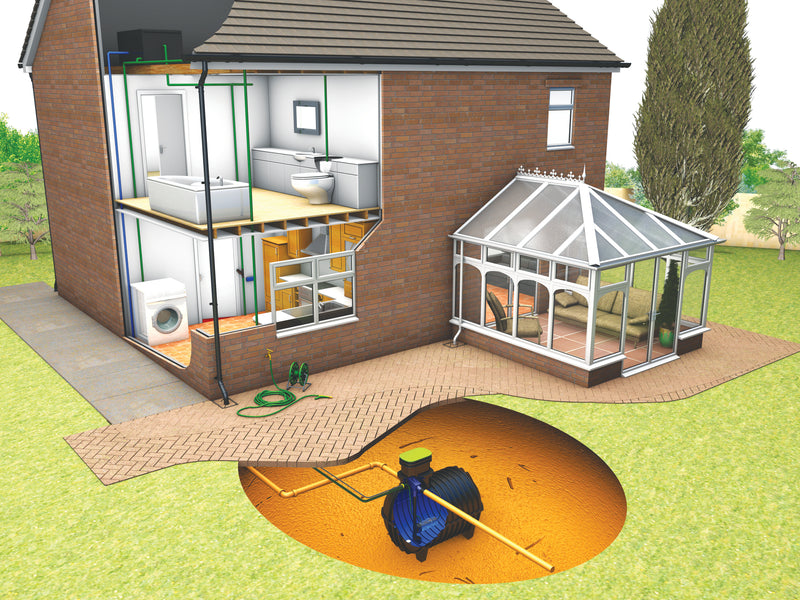

Gravity feed systems are ideal for low energy use and guaranteed water supply at all times, even in times of no power!
Header tank dims:
The 82 ltr Rectangular Water Tank comes with a fitting kit, which includes:
• Polytank Byelaw 30 kit and fitting instructions
• 1/2" BS1212 Part 2 ball valve and 4 1/2" float
• Ball valve back plate
• 22mm compression tank connector
• 15mm x 1/2" angled service valve
• Insulation and ties
Length 24"
Width 18"
H 19"
(approx. dims)
Plus Polytank A30 ( XPA30)
POLYTANK PolyA30 chamber with weir for back flow protection in accordance with water regulations and BS8515
15" x 10" x 92 (LxWxH)
