Polystorm 190L Storm Soakaway Crate by Polypipe – Damaged Stock
Item Condition Disclaimer

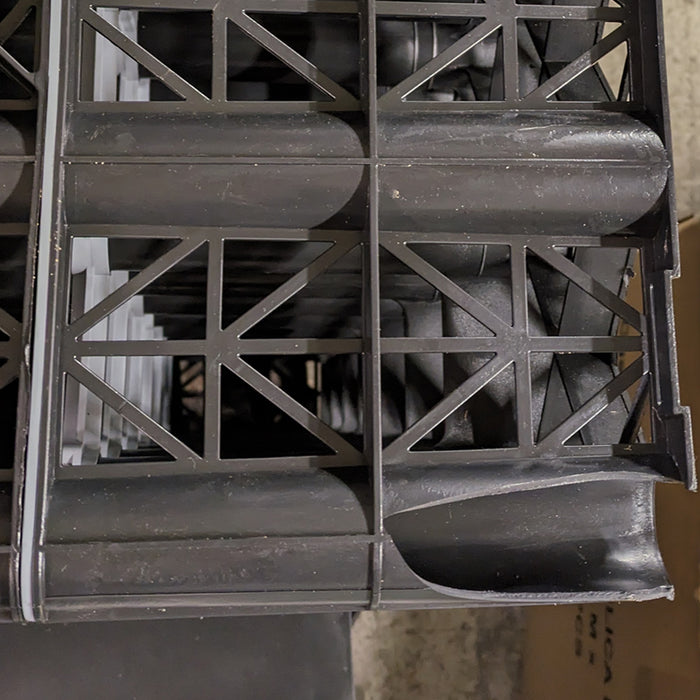

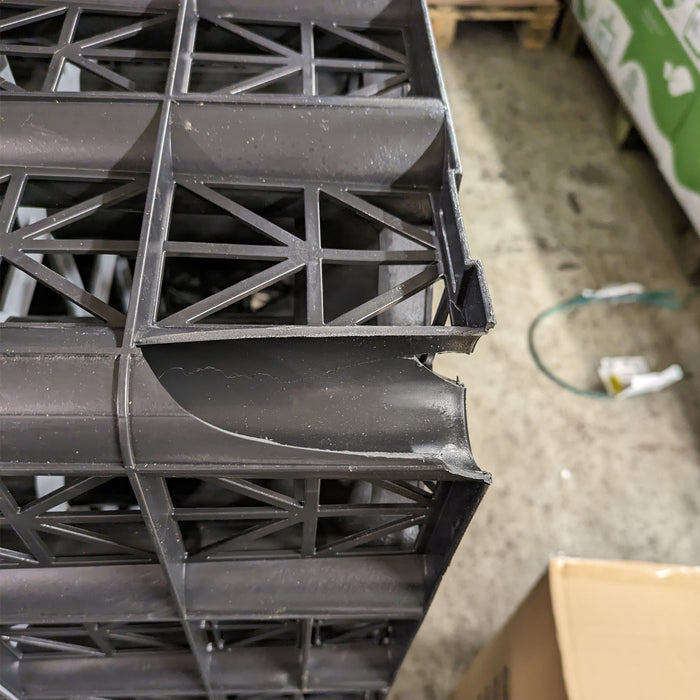

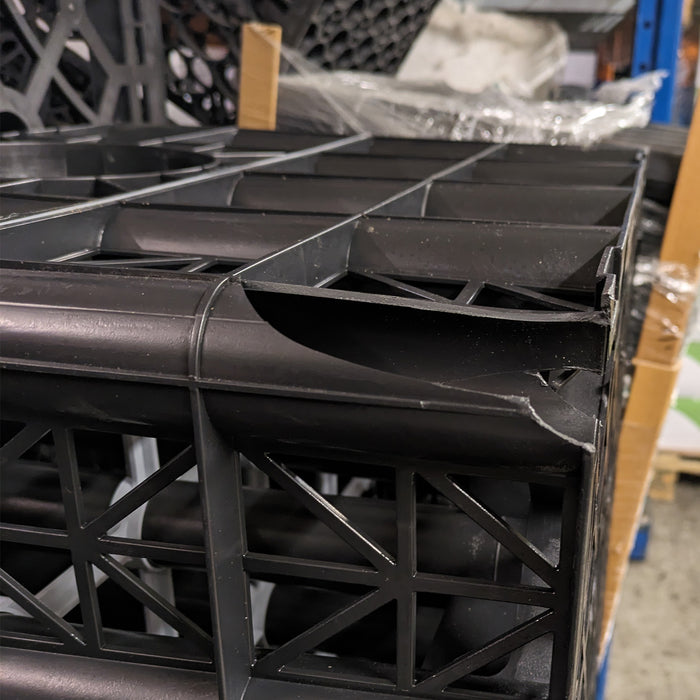

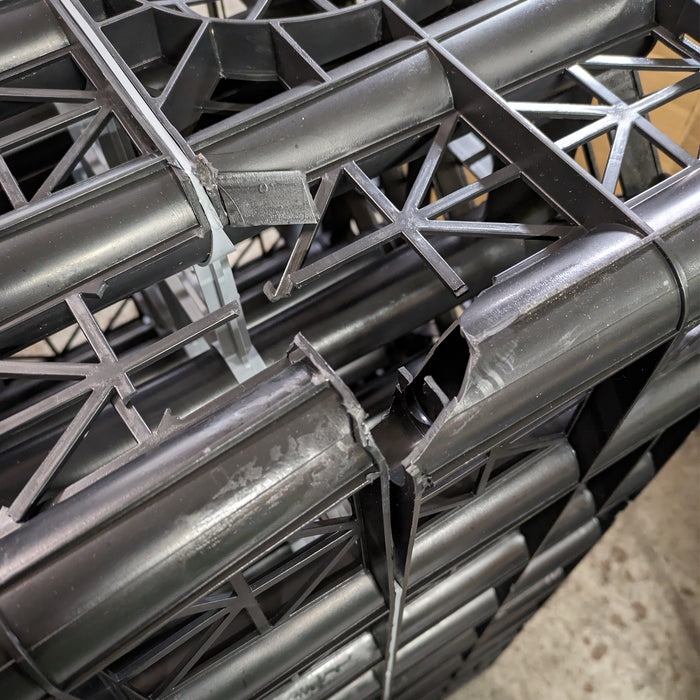

This is a clearance item. These crates are customer returns with cosmetic damage such as cracked corners, scuffed edges, or chipped sides. The structural integrity and performance are not affected, and they remain fully functional for their intended use. The listing photos show typical examples of the kind of damage sustained.
Available in single units only, with two purchase options:
- Crate Only
- Crate With Geotextile Membrane
Product Overview
The Polystorm PSM1A is a high-performance 190L modular soakaway crate developed by Polypipe for sustainable surface water management. Designed for both attenuation and infiltration systems, it’s ideal for installations under trafficked areas, such as driveways, access roads, and car parks. The crate is manufactured from 100% recycled materials and forms part of a fully BBA-approved SuDS system.
Key Features
-
Strong and reliable – Vertical compressive strength of 440kN/m² (approx. 44 tonnes/m²)
-
Modular and scalable – Stackable for custom layout designs and adaptable tank volumes
-
SuDS-compliant – Ideal for soakaway and attenuation solutions
-
Built for traffic loads – Suitable for installation under loaded surfaces and vehicular access
-
Sustainable – Made from recycled plastic and fully recyclable at end of life
-
Inspection-ready – Compatible with Polystorm Access and Inspect components
-
50-year lifespan – Designed to meet long-term performance requirements under load
Common Applications
- Car parks and service yards
- Driveways and residential roads
- Commercial building drainage
- Housing developments
- SuDS infiltration and attenuation systems
Optional Geotextile Wrap (100gsm NW8)
Add-on option includes cut-to-size geotextile fleece, supplied per crate:
Technical Specifications
-
Product Code: PSM1A
-
Dimensions: 1000mm (L) × 500mm (W) × 400mm (H)
-
Unit Weight: Approx. 9kg
-
Storage Volume: 190 litres (0.19m³)
-
Void Ratio: 95%
-
Vertical Strength: 440kN/m²
-
Lateral Strength: 63kN/m²
-
Max Burial Depth: 3.7m (light-trafficked), 3.8m (non-trafficked)
-
Material: 100% recycled polypropylene
-
Service Life: 50 years (creep-limited)
-
Certification: BBA Approved (Cert No. 06/4297)
Installation Overview
- Excavate to depth and prepare a flat, compacted base
- Wrap base and sides in membrane (geomembrane or geotextile depending on system)
- Assemble crates and interconnect using provided clips and connectors
- Backfill evenly with clean granular fill
- Cover with membrane (if required) and reinstate surface
FAQs
Are these crates structurally sound despite the damage?
Yes. Only corners or sides are damaged. Load-bearing and storage capacity remain unaffected.
Can they still be installed under trafficked areas?
Yes, they retain their 440kN/m² compressive strength rating and are suitable for use under driveways, car parks, and access roads.
Is a geotextile membrane necessary?
Yes, for infiltration systems use NW8 fleece. For attenuation (sealed tanks), use an impermeable geomembrane with protection fleece.
