B125 Ductile Iron Solid Top Cover & Frame
Heavy-Duty Ductile Iron Manhole Cover For Pedestrian Areas & Car Parks
The B125 Ductile Iron Solid Top Cover & Frame is a durable, heavy-duty manhole cover designed for use in footways, driveways, pedestrian zones, and car parks. Made from quality-assured ductile iron, it delivers long-lasting performance in demanding outdoor environments.
Tested and certified to BS EN 124-2:2015 standards, this solid top cover is built to handle 125kN load ratings in line with B125 applications - making it a trusted solution for inspection chambers and drainage infrastructure.
Practical & Robust, With A Distinctive Tread Finish
This cover and frame set is engineered with end users in mind. The solid top features a unique slip-resistant tread pattern developed by Thomas Dudley, offering improved grip underfoot in wet conditions. Whether installed in a domestic drive or a commercial pedestrian route, it ensures safe and secure access.
- Suitable for driveways, footpaths, pedestrian areas, and light-traffic car parks
- One-piece solid top design for improved strength and anti-rattle performance
- Unique Thomas Dudley tread pattern for enhanced slip resistance
- Fully compliant with BS EN 124-2:2015 (Class B125)
- Compatible with CD 553 lifting keys (sold separately)
Product Options
| Product Code | Clear Opening | External Dimensions | Height |
|---|---|---|---|

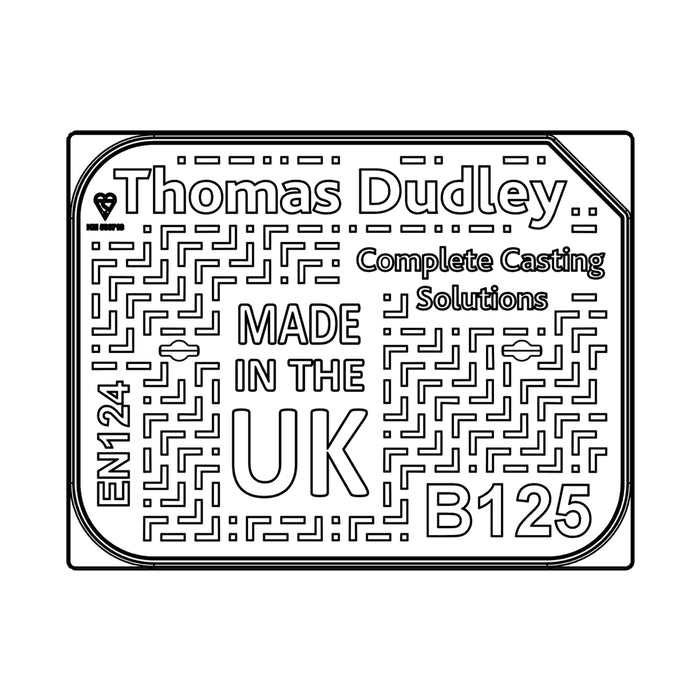

| EG-DI-6045/40 | 600mm x 450mm | 662mm x 510mm | 40mm |

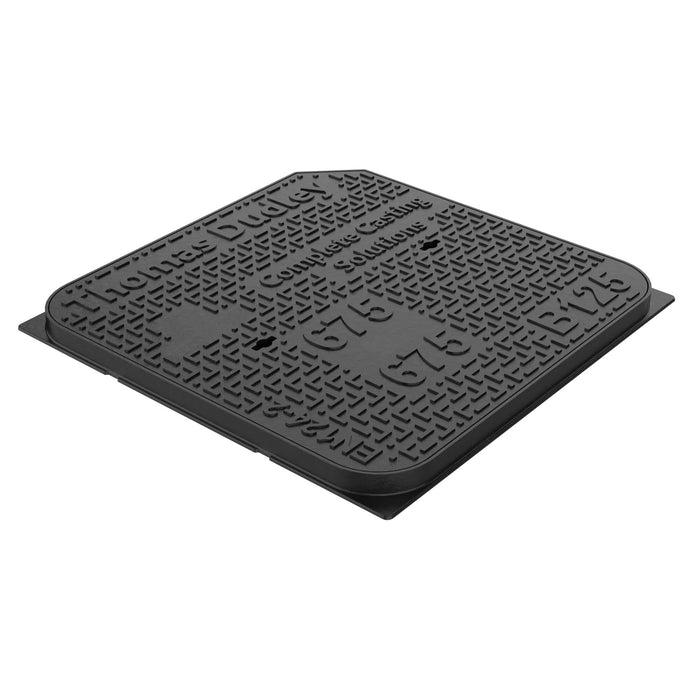

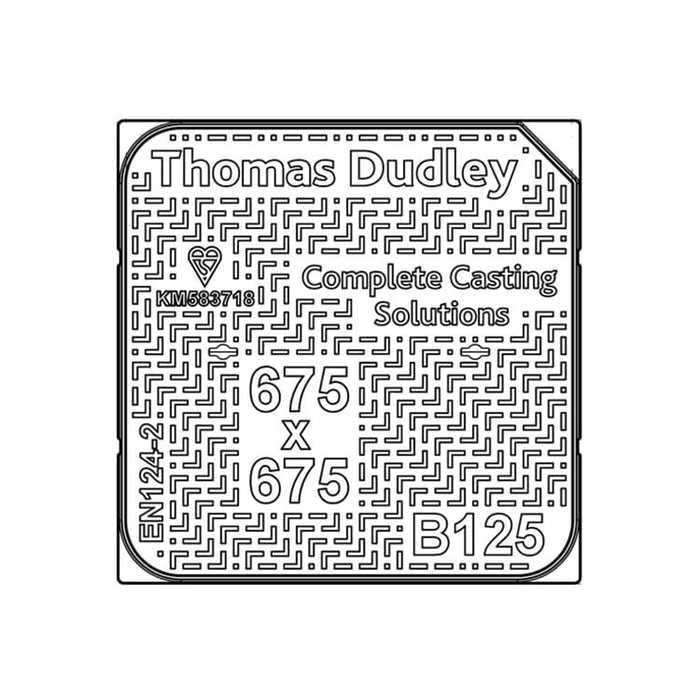

| EG-DI-675/40 | 675mm x 675mm | 736mm x 736mm | 40mm |

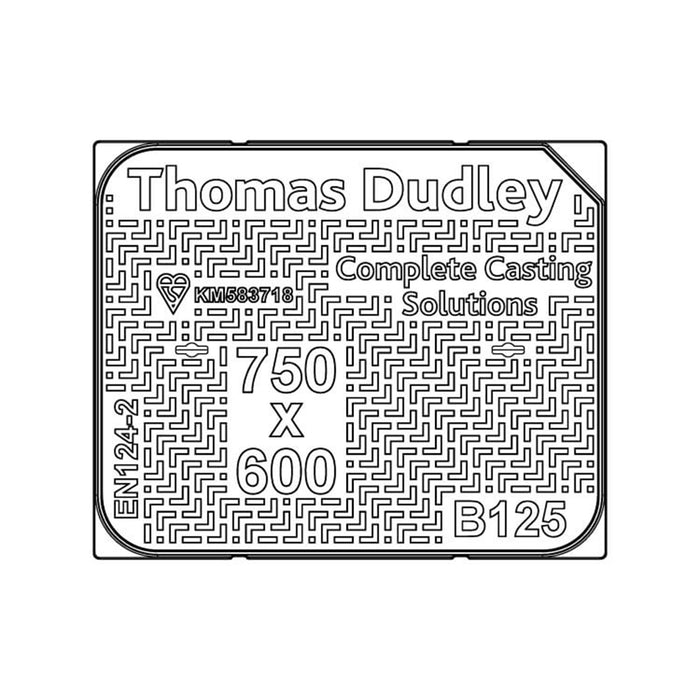

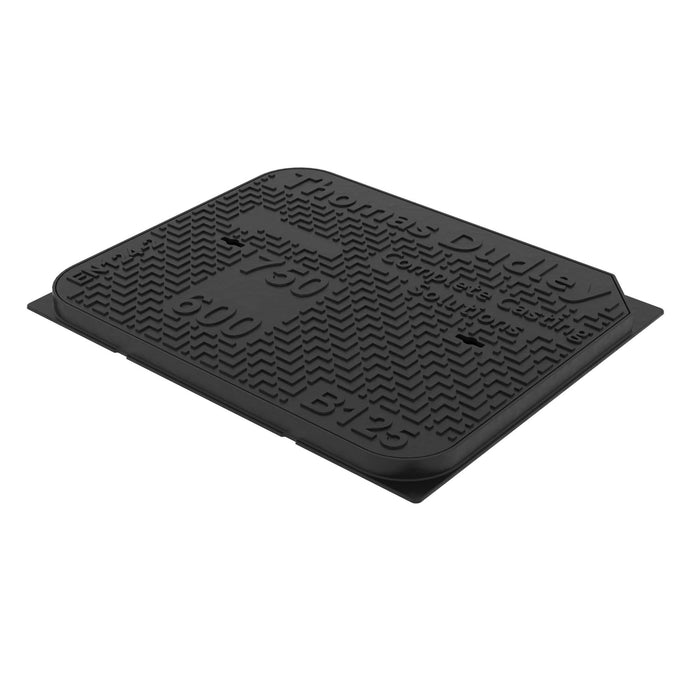

| EG-DI-7560/40 | 750mm x 600mm | 818mm x 668mm | 40mm |

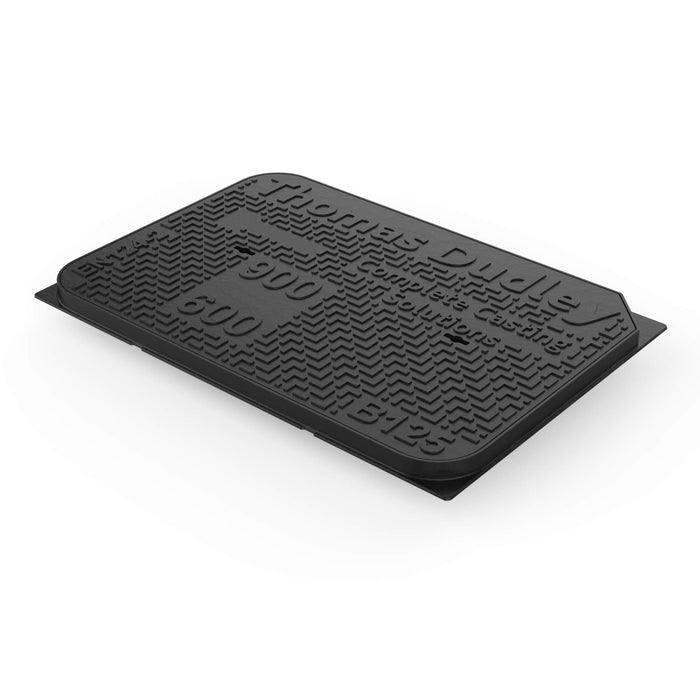

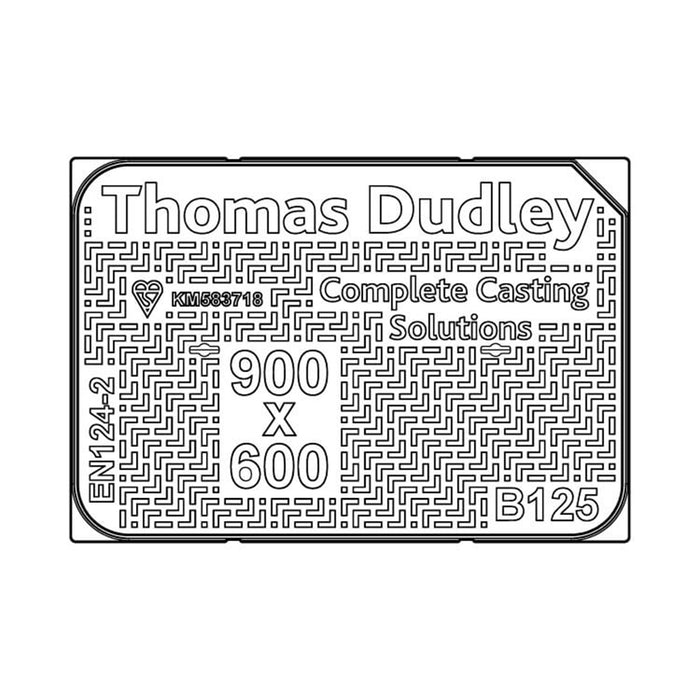

| EG-DI-9060/40 | 900mm x 600mm | 969mm x 668mm | 40mm |
Technical Specifications
- Material: Ductile iron
- Standard: BS EN 124-2:2015, Class B125
- Finish: Slip-resistant patterned solid top
- Height: 40mm
- Load Rating: 125kN (12.5 tonnes)
- Use Areas: Footways, driveways, pedestrian routes, light-use car parks
- Lift Access: Compatible with CD 553 keys (sold separately)
FAQs
Is this manhole cover suitable for driveway use?
Yes, it is rated B125 and suitable for use on domestic driveways where vehicles up to 12.5 tonnes are expected.
Can I lift the cover easily for maintenance access?
Yes. These covers are compatible with CD 553 lifting keys, allowing straightforward removal when needed.
Is the tread pattern effective in wet weather?
Yes. The solid top features a unique slip-resistant design developed by Thomas Dudley for safer access in damp conditions.

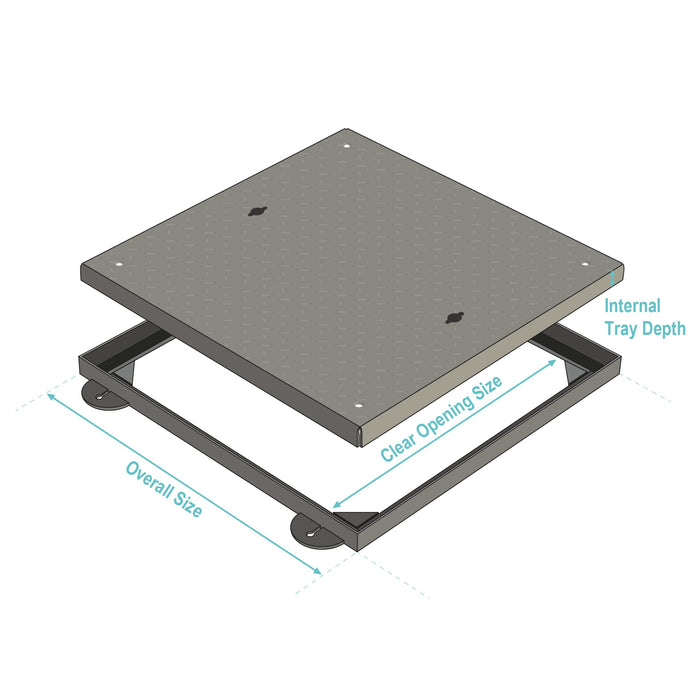

What does the clear opening size refer to?
It refers to the internal chamber opening - the actual space the cover sits over. External dimensions include the full frame.
Is this cover compliant with current UK standards?
Yes. It is tested and certified to BS EN 124-2:2015 for B125 applications and manufactured from quality-assured ductile iron.
