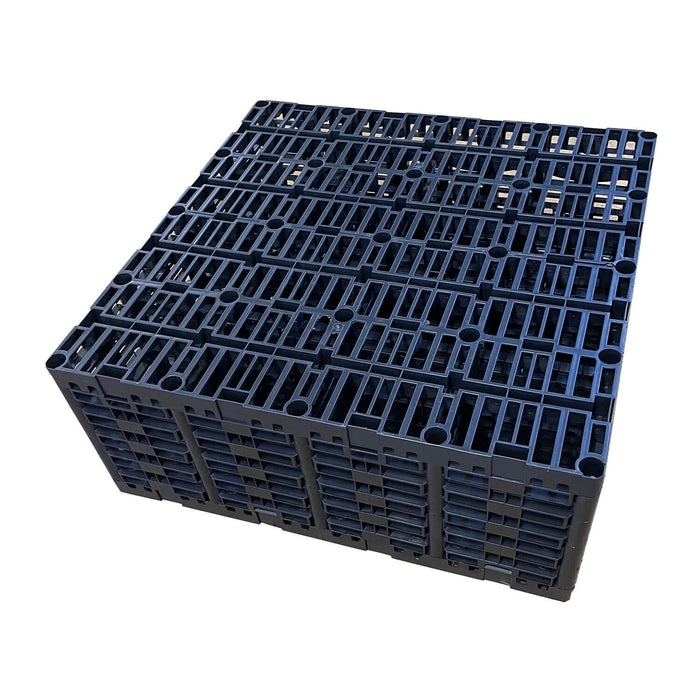

AquaCrate 400L Storm Soakaway Crate

Durable and Efficient Rainwater Management Solution

The AquaCrate 400L Storm Soakaway Crate effectively manages rainwater runoff, reducing flood risk and preventing waterlogging. Built for heavy-duty applications, this high-capacity, load-bearing crate quickly absorbs and disperses surface water into the ground, supporting even HGV traffic loads. With a modular, UK-made design, it offers adaptable installation options to meet a variety of site requirements. Crafted from recycled polypropylene, the AquaCrate 400L is an eco-conscious, SuDs-compliant solution for sustainable stormwater management.

Key Features

• High Load-Bearing Capability: Supports up to 100 tonnes/m², handling light to heavy-duty traffic, including HGVs.
• Efficient Installation: Lightweight (under 25 kg) and modular (1m x 1m x 400mm), allowing for easy and quick assembly.
• Versatile Use: Ideal for infiltration, retention, and attenuation with compatible geotextile membranes.
• Eco-Friendly: Made from recycled polypropylene, recyclable at end-of-life.
• UK Quality Standards: Produced to ISO 9001 standards for assured quality and reliability.

Applications

1. Permeable Infiltration: Enclose units in non-woven, needle-punched geotextile for controlled water discharge while blocking soil ingress.
2. Water Storage: Use an impermeable geomembrane for secure water storage when paired with the geotextile wrap.

Project Benefits

• Flood Prevention: Manages peak flows, reducing strain on drainage systems.
• Enhanced Water Quality: Geotextile filtration removes contaminants from rainwater.
• Development Support: Allows development on challenging sites by providing reliable water retention and attenuation.
• Environmental Impact: Minimises ecosystem disruptions associated with new developments.

Technical Specifications

• Nominal Size: 1000mm (L) x 1000mm (W) x 400mm (H)
• Capacity: 400 Litres (2.5 units per cubic meter)
• Unit Weight: 16 kg
• Void Ratio: 95.5%
• Compressive Strength: >200 KN/m²
• Lateral Strength: >70 KN/m²

Package and Quantity Options

• Single Crate (400L Capacity)
• 3-Crate Package (1200L Capacity)
• 6-Crate Package (2400L Capacity)
• Available with or without geotextile wrap.

Installation Steps

1. Site Preparation: Excavate and level the installation area. Maintain a minimum cover depth of 0.5m for landscaped areas and 0.75m for vehicular areas.
2. Base Preparation: Add a 75mm layer of sharp sand to create a stable base.
3. Assembly: Connect multiple crates as needed, ensuring secure alignment.
4. Wrapping (If Needed): Wrap in geotextile for infiltration or use an impermeable membrane for water storage applications.
5. Placement: Install the crate assembly in the prepared site, ensuring stability and level placement.
6. Backfill and Cover: Use suitable backfill material, covering with soil to required depth.
7. Maintenance: Install a silt trap to prevent blockages, and inspect regularly, with optional CCTV/back-jetting points for maintenance.

The AquaCrate 400L provides a reliable and eco-friendly solution for efficient stormwater management across various applications.
