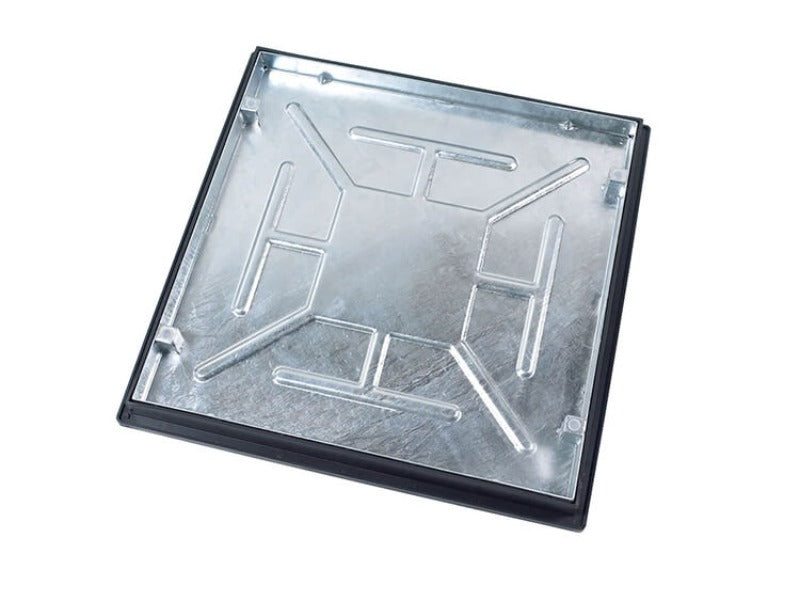

600 x 600mm Sealed Manhole Cover W/ 43.5mm Recessed Tray

Original price £106.91 - Original price £106.91
Original price
£106.91
£106.91 - £106.91
Current price £106.91
No reviews
SKU T16G3

Sealed and Locking Manhole Covers are the new equivalent to double sealed. As per the Building Regulations 2000, internal manhole covers have to be air tight but a single or double seal is not specified. All of our recessed T-Range covers feature a rubber gasket seal and a locking function.

Common applications for Sealed and Locking Covers are internal rooms, tiled floors, patios, playgrounds and suchlike. In many circumstances, especially high-end properties, a decorative finish of brass, aluminium or stainless steel is preferred; let us know and we can quote for this.

Measurements

Clear Opening: 600mm x 600mm
Inset in Tray: 43.5mm
Overall Frame Size: 740mm x 740mm
Overall Depth: 58mm

Tech Spec

  • Rubber sealing gasket allows this cover to be installed internally since it helps with blocking odours and smells
  • 5 tonne gross plated weight load bearing capacity means this cover is primarily designed for pedestrian applications, but can be driven over occasionally
  • 4 screw locking to secure the manhole cover in place, as per Building Regulations 2000 this is a suitable alternative to the commonly misused phrase "double sealed"
  • CD 776 Lifting keys can be used to lift the tray and gain access to the chamber when required, see below or the accessories tab.
  • Polypropylene, black plastic frame with a mild galvanised steel tray.
  • Mild Steel to BS EN 1449:1991/EN 10025:2004
  • Galvanising to BS EN 1461:2009
  • Polypropylene Grade AP9
  • FACTA clauses 7.0, 7.2, 7.2.1, 7.2.3 & 7.3.3
