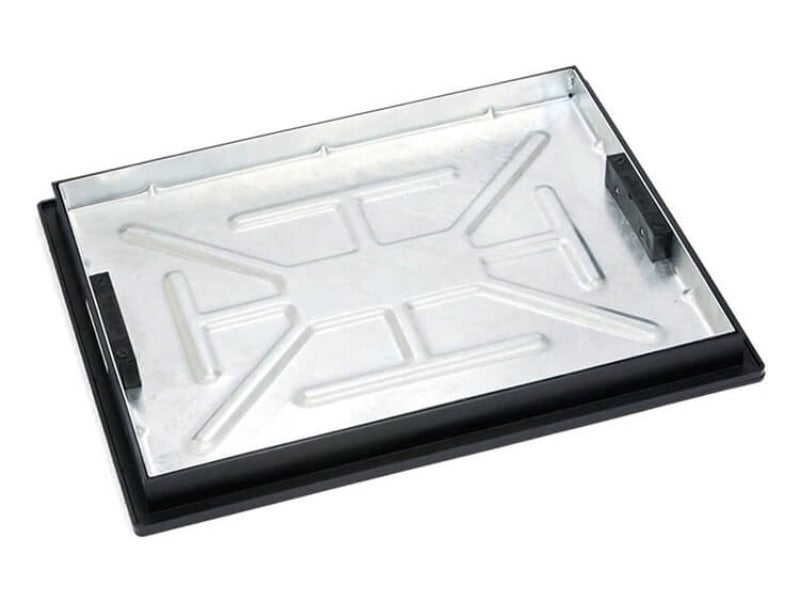

600 x 450mm Sealed Manhole Cover W/ 43.5mm Recessed Tray

Sealed and Locking Manhole Covers are the new equivalent to double sealed. As per the Building Regulations 2000, internal manhole covers have to be air tight which is achieved with a sealed and locking cover. All of our recessed T-Range covers feature a rubber gasket seal and a locking function.

Common applications for Sealed and Locking Covers are internal rooms, tiled floors, patios, playgrounds and suchlike. In many circumstances, especially high-end properties, a decorative finish of brass, aluminium or stainless steel is preferred; , especially high-end properties, a decorative finish of brass, aluminium or stainless steel is preferred

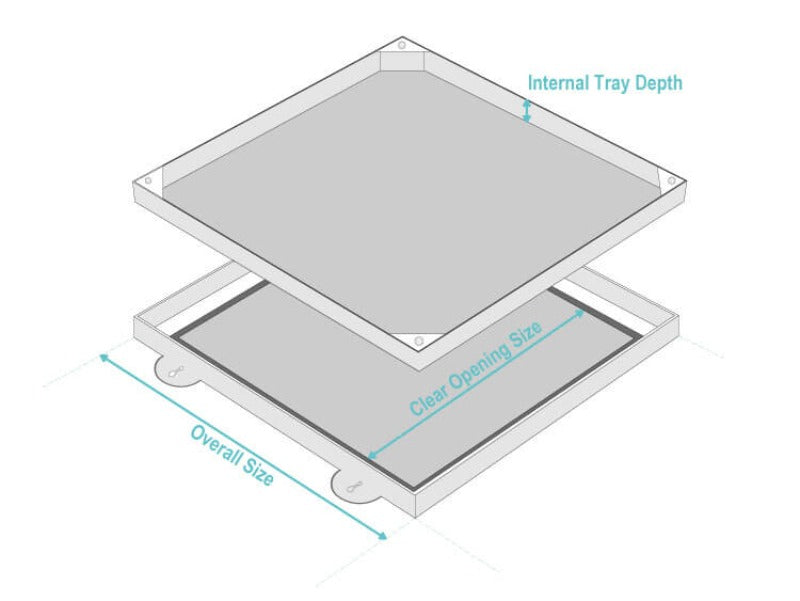

Measurements

Clear Opening: 600mm x 450mm
Inset in Tray: 43.5mm
Overall Frame Size: 700mm x 550mm
Overall Depth: 58mm

Tech Spec

• Rubber sealing gasket allows this cover to be installed internally since it helps with blocking odours and smells
• 5 tonne gross plated weight load bearing capacity means this cover is primarily designed for pedestrian applications, but can be driven over occasionally
• 4 screw locking to secure the manhole cover in place, as per Building Regulations 2000 this is a suitable alternative to the commonly misused phrase "double sealed"
• Built in integrated lifting keys
• Mild galvanised steel tray and frame
• Mild Steel to BS EN 1449:1991/EN 10025:2004
• Galvanising to BS EN 1461:2009
• FACTA clauses 7.0, 7.2, 7.2.1, 7.2.3 & 7.3.3
