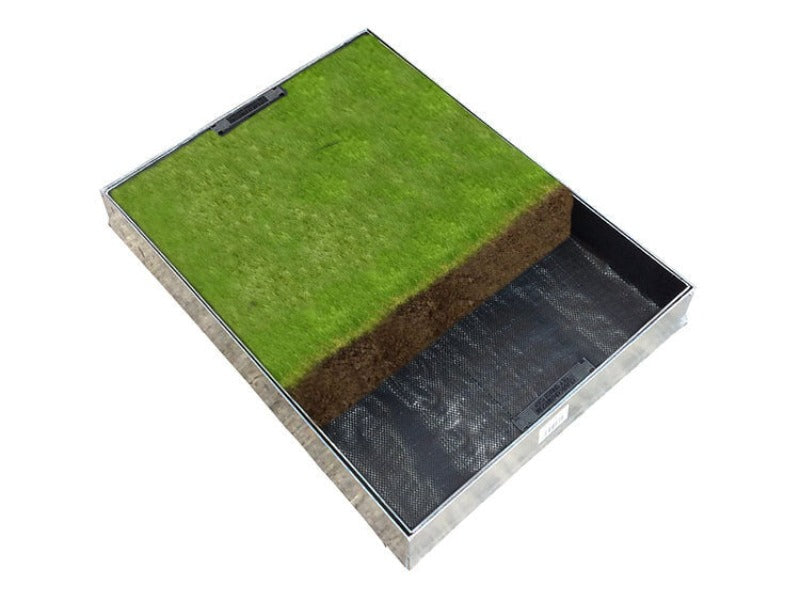

600 x 450mm GrassTop Manhole Cover for Gardens w/ 80mm Recessed Tray Completely Galvanised

Discrete and natural in appearance, our line of GrassTop manhole covers is an excellent choice for residential and commercial grassed or turfed areas. Using specialist permeable geotextiles, rainwater is allowed to filter through and drain out naturally.

Measurements

Clear Opening: 600 x 450mm
Inset in Tray: 80mm
Overall Frame Size: 695 x 545mm
Overall Depth: 96mm

Tech Spec

• 10 tonne gross plated weight load bearing capacity means this cover is suitable for driveways of domestic vehicles, vans and small trucks
• Integral lifting keys to lift the tray as required, once the safety screws are loosened
• Perfect solution for patios, driveways and general residential use
• 80mm inside tray to allow for common 60mm deep pavers / blocks, and a sufficient mortar bedding
• Mild galvanised steel tray and frame.
• Mild Steel to BS EN 1449:1991/EN 10025:2004
• Galvanising to BS EN 1461:2009
• FACTA clauses 7.0, 7.2, 7.2.1, 7.2.3 & 7.3.3
