Compact Aluminium Gully Drain for Landscaping & Driveways

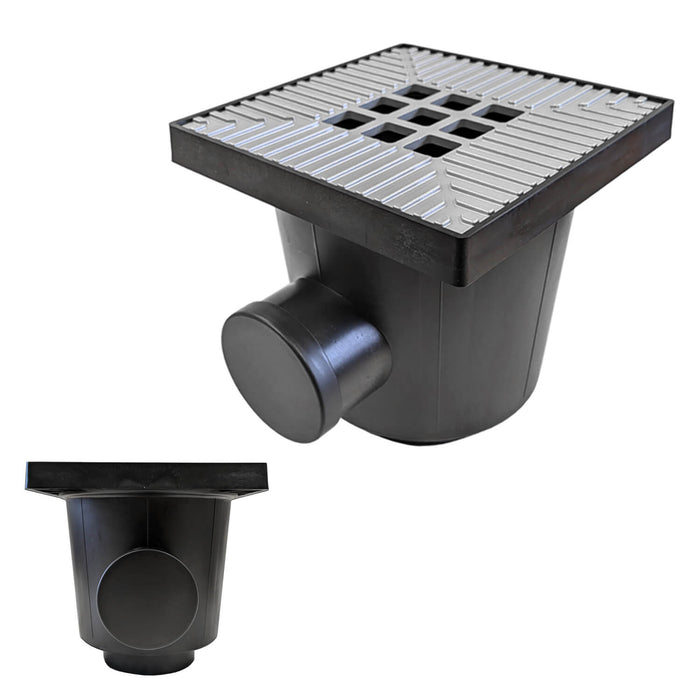

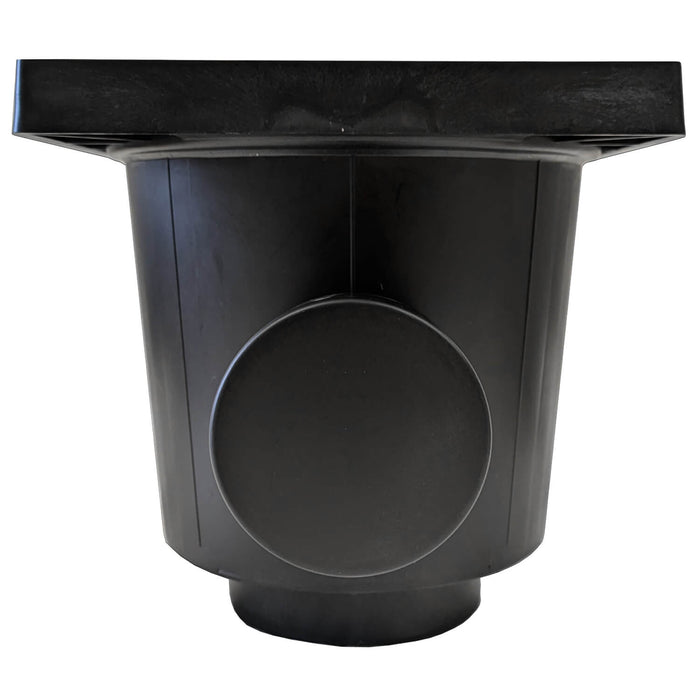

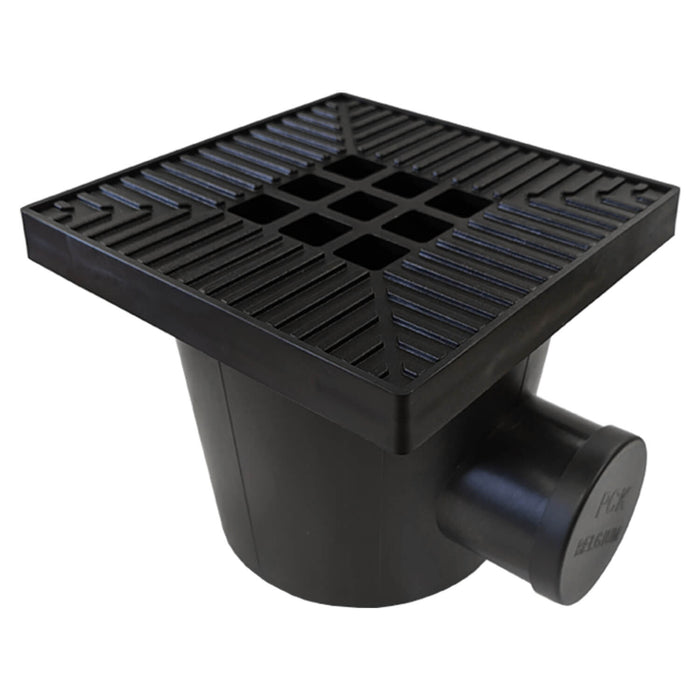

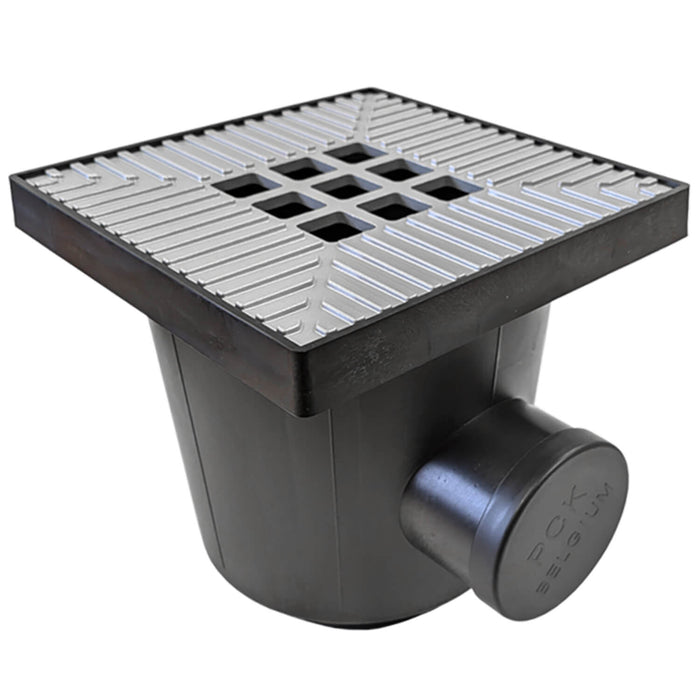

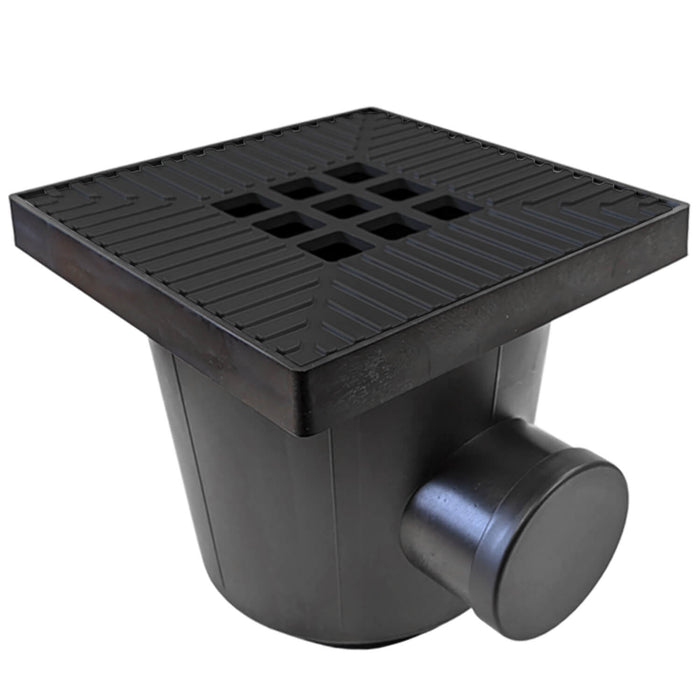

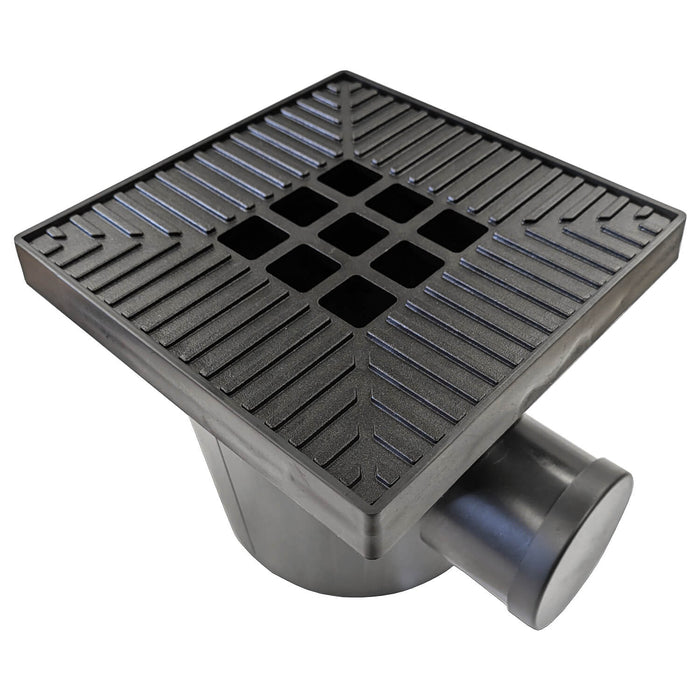

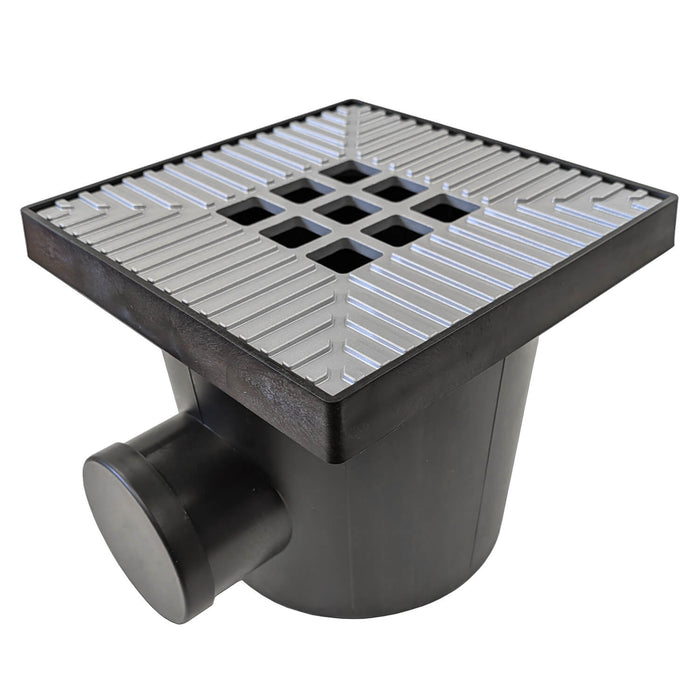

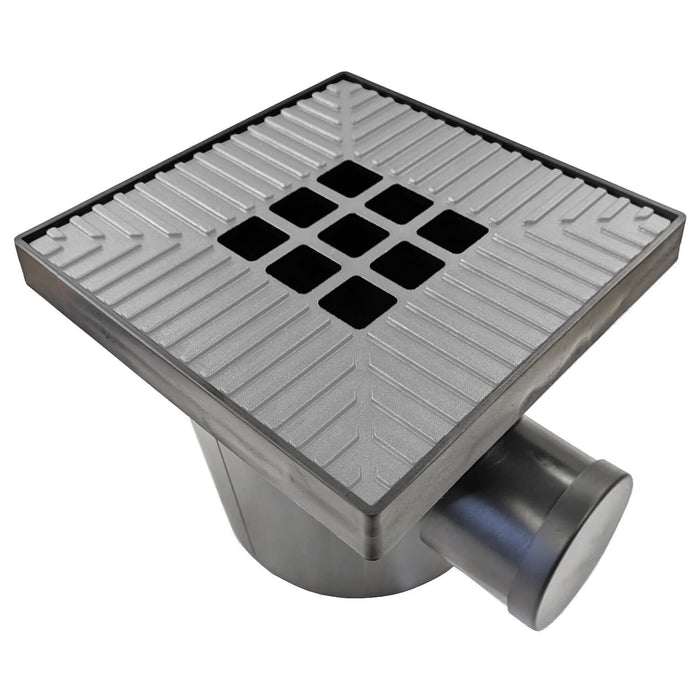

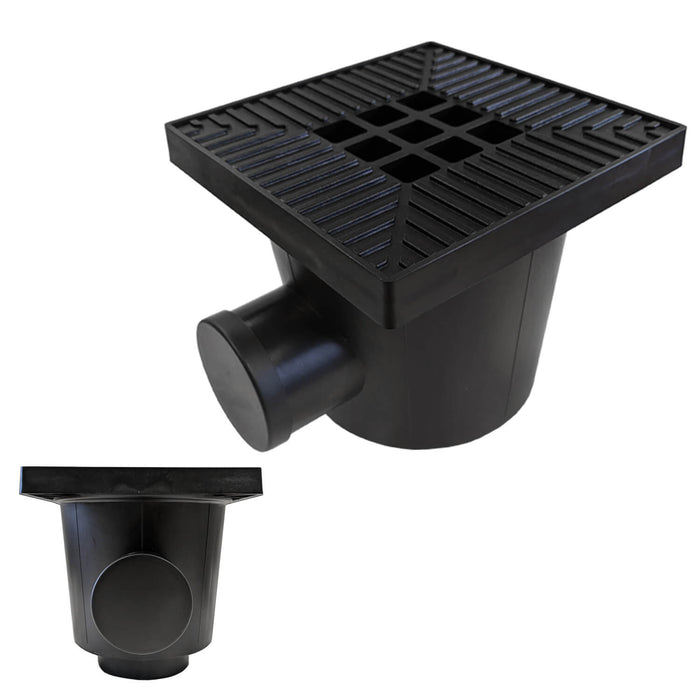

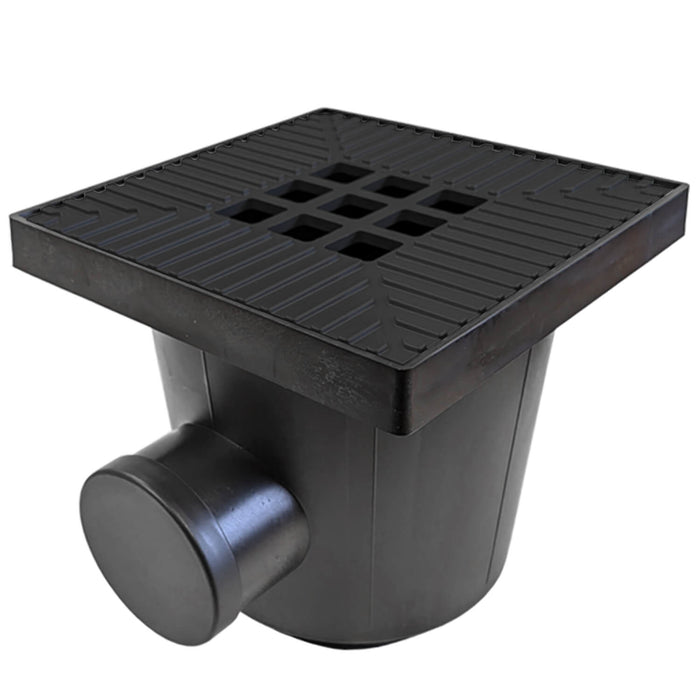

The Alusthetic Aluminium Gully Drain is a compact, high-capacity water collection unit designed for efficient surface water management in landscaping, patios, driveways, and paved areas. With a 200mm x 200mm aluminium top and integrated side and bottom outlets, it offers flexible installation options to suit your drainage layout. Available in black or silver anodised finishes for a clean, modern look.

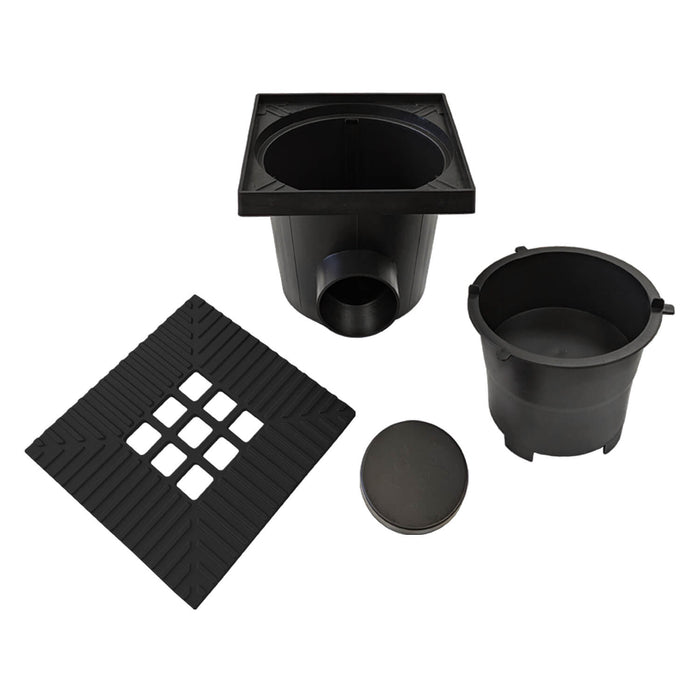

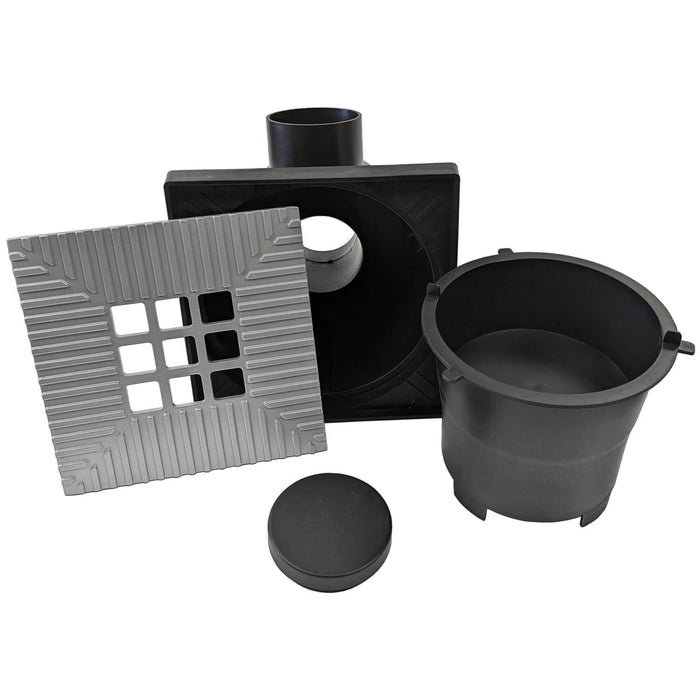

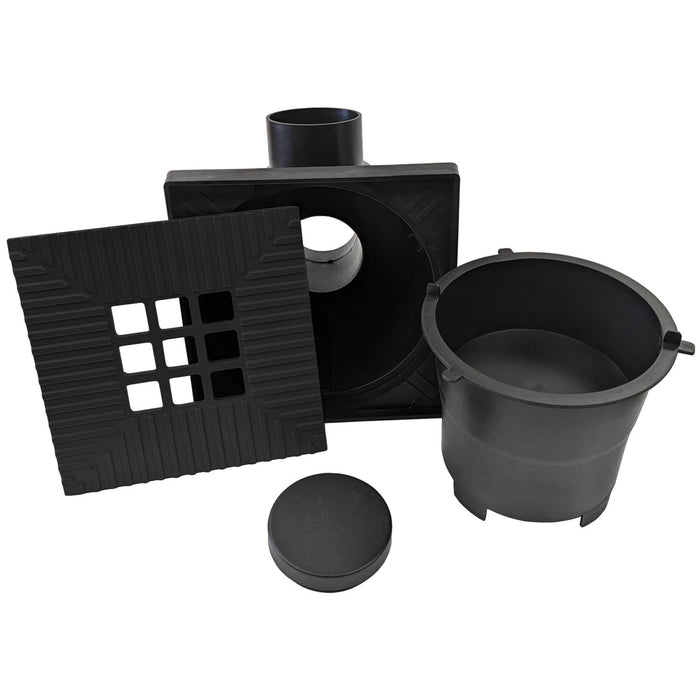

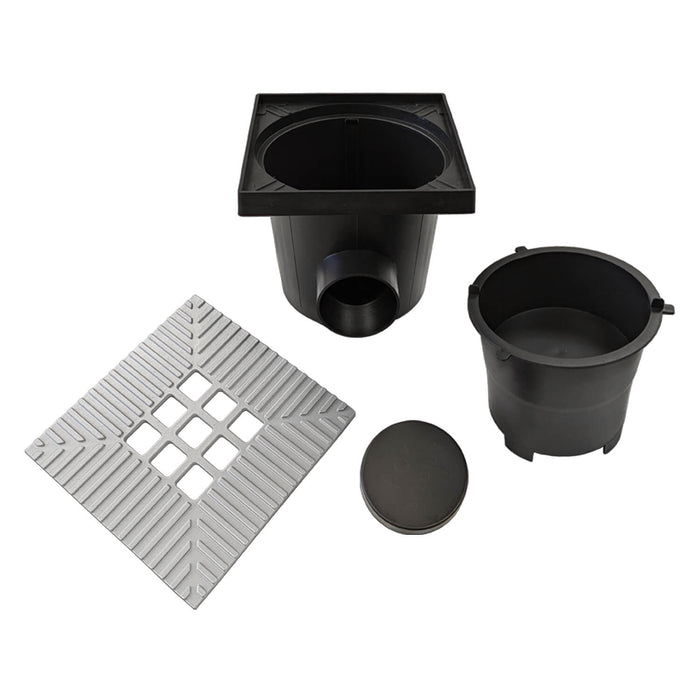

The Alusthetic Aluminium Gully Drain combines a compact footprint with versatile connection options, making it suitable for a wide range of landscaping and driveway projects. Its 200 mm x 200 mm aluminium top conceals a 75 mm side outlet and a bottom outlet that can be adapted to either 75 mm or 110 mm pipework, providing flexibility during installation. A blanking cap is included to seal any unused outlet, ensuring a watertight system and preventing debris ingress.
Installation is straightforward: prepare the ground to the required depth, connect the chosen outlet to standard underground drainage fittings, and secure the unit in place with appropriate bedding. The removable aluminium top plate allows for quick inspection and easy cleaning, keeping maintenance simple. Built from corrosion-resistant aluminium, the gully drain is designed to withstand the elements and maintain performance over time in domestic and light-use environments, offering both durability and a sleek, modern finish.
Features and Benefits
- Choice of black or silver anodised aluminium finish
- 200 mm x 200 mm compact top profile for discreet installation
- Side outlet – 75 mm diameter
- Bottom outlet – 75/110 mm adaptable
- Supplied with blanking cap for unused outlet
- Compatible with standard UK underground drainage fittings
- Low-maintenance removable top for easy cleaning
- Strong, corrosion-resistant aluminium build
Technical Specifications
- Brand: Alusthetic
- Top Dimensions: 200 mm (L) x 200 mm (W)
- Side Outlet: 75 mm
- Bottom Outlet: 75 mm or 110 mm (adaptable)
- Finish: Black anodised / Silver anodised aluminium
- Material: Aluminium top and body
- Included: Blanking cap
- Application: Landscaping, patios, driveways, paved areas
FAQs
How do I choose between the side and bottom outlet?
Use the side outlet when connecting into a lateral run; use the bottom outlet for direct vertical connections.
Is the top plate removable?
Yes, the aluminium top lifts off for easy access to the gully for cleaning and maintenance.
Can I use this with resin bound stone?
Yes, the flush, square top works well in resin bound, block paving, or slabbed areas.
What type of drainage pipe does it connect to?
Standard 75 mm or 110 mm underground drainage pipework.
Is it suitable for heavy traffic?
It is intended for pedestrian and light-use driveways. For heavy commercial traffic, check the load rating and use an appropriate gully.
