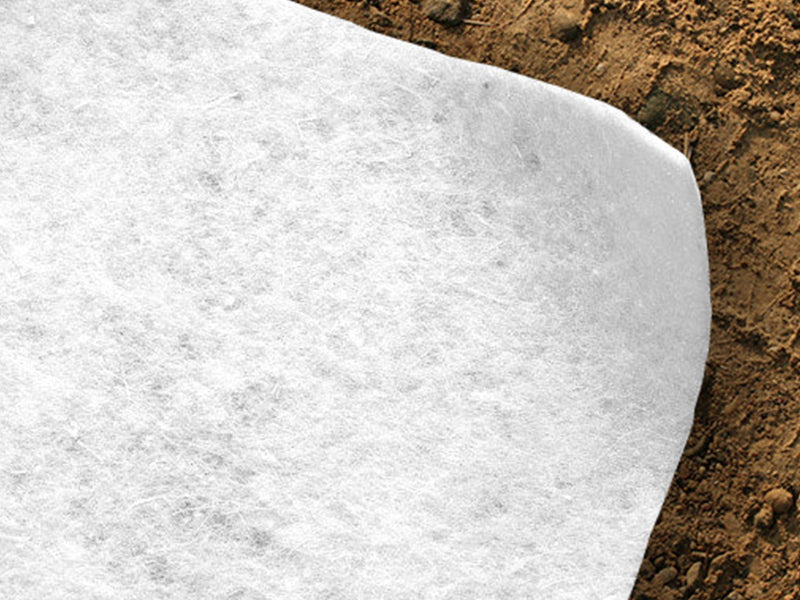

non woven white geotexile membrane laid on sand

White NW8 Non-Woven Geotextile Fleece 100gsm

Name: White NW8 Non-Woven Geotextile Fleece 100gsm
Brand: Geotextile Membranes
SKU: geo-nw8-22.5
Price: 38.16 GBP
Availability: InStock

by Geotextile Membranes

Sale

£38.16 - £268.39

£268.39

£38.16

£38.16 - £214.65

£38.16

Quantity

No reviews

SKU geo-nw8-22.5

It is designed for filtration and separation applications, such as equestrian, horse arenas, paddocks, road construction, French drains, trench lining, weed prevention, soakaway, attenuation tank wrapping and driveways.

Mechanical Properties	Test	Unit	Multitrack NW8
Tensile Strength - MD	EN ISO 10319	kN/m	8.0
Tensile Strength - XD	EN ISO 10319	kN/m	8.0
Elongation At Break - MD	EN ISO 10319	%	40
Elongation At Break - XD	EN ISO 10319	%	45
CBR Puncture Resistance	EN ISO 12236	N	1400
Dynamic Cone Drop	EN 912	mm	34.0
Protection Efficiency	WI 189066	N	65.0

Hydraulic Properties
Permeability	EN ISO 11058	m/s	110 x 10^-3
Waterflow Normal To The Plane	EN ISO 11058	l/m².s	110
Waterflow In The Plane	EN ISO 12958	m²/s	1 x 10^-7
Characteristic Opening Size	EN ISO 12956	µm	130.0

Physical Properties
Thickness Under 2kPa	EN 964/1	mm	1.00
Weight	EN 965	g/m²	110.0
Roll Width		m	4.50
Roll Length		m	100
Roll Diameter (+/-10%		cm	42
