Alusthetic Threshold Drainage System Accessories

Complete accessory range for Alusthetic threshold drains

These Alusthetic accessories support clean installation and reliable performance across all threshold drainage setups. Each component fits directly onto the Alusthetic channel profile to create secure joints, add outlet options and make maintenance simple. The range covers end caps, bottom connectors, outlet variations, a debris trap and lifting keys, giving you everything needed to finish and maintain the system.

Practical components for a reliable drainage layout

The accessories push fit onto the channel using the built in locating ribs. This creates a firm connection during installation. Where a watertight seal is required, PVC solvent weld can be applied to bond the joint. This gives you flexibility to install the system in a way that suits the site, whether on a simple patio threshold or a run feeding into underground drainage.

Each part is manufactured from durable PVC for long service life outdoors. The full range allows you to build straight runs, create side connections, form vertical outlets and maintain clear flow.

Accessories in the Range

Bottom Connector

Joins two 1m channel drain bases. Available in:

• • Standard connector with no outlet for joining channels.

  • 80mm vertical outlet for connection into 80mm or 110mm pipe via adaptor.

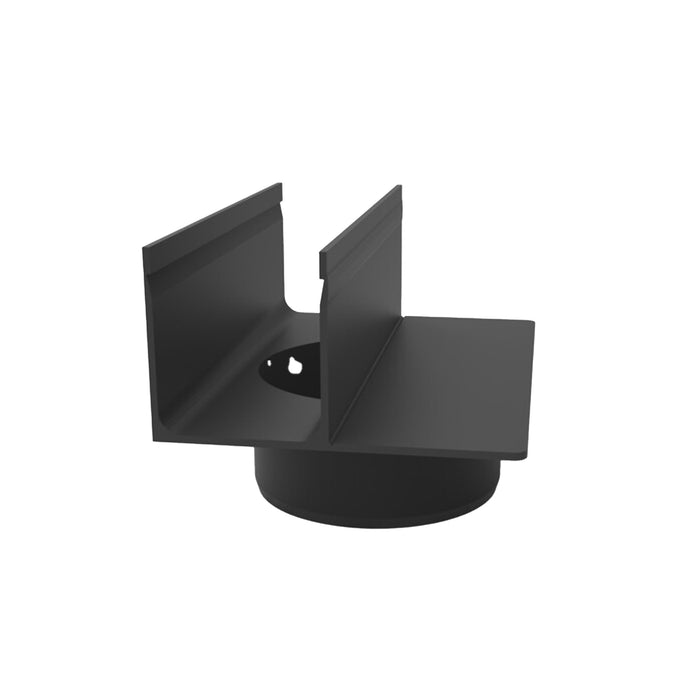

  • 110mm vertical outlet for direct discharge into standard 110mm pipework.
    Ideal for extending runs or creating a high capacity outlet point.

End Caps

Close off the channel at either end. Available in versions:

• • Plain end cap for a clean termination.

  • End cap with 50mm side outlet for feeding the drain run into 50mm or 110mm pipe using the correct adaptor.
    These provide a tidy finish and flexible connection options.

Debris Trap

Fits beneath the outlet to catch silt, leaves and dirt before it enters the pipe. This helps keep the drainage system clear and reduces long term maintenance.

Lifting Keys (Set of 2)

Used to lift the aluminium grate for cleaning or inspection. Quick grate removal makes the system easier to maintain.

PVC Solvent Weld

Recommended when you want a fully sealed joint. Available in 125ml or 250ml.

Features and Benefits

• Designed for the Alusthetic threshold drain system
  All components match the channel profile for secure installation.

• Simple push fit connection
  Components clip into place, with the option to solvent weld for a watertight seal.

• Flexible outlet choices
  50mm, 80mm and 110mm outlet paths cover all common domestic drainage setups.

• Supports long drainage runs
  Join channels neatly using bottom connectors with or without outlets.

• Low maintenance
  Debris trap and lifting keys make inspection and cleaning straightforward.

• Durable construction
  Made from high quality PVC for long term outdoor use.

Technical Details

• Material: PVC
• Compatibility: Alusthetic 1m threshold channel system
• Available Outlets: 50mm side, 80mm vertical, 110mm vertical
• Join Type: Push fit, solvent weld
• Usage: Thresholds, patios, paved areas, doorways

FAQs

How do the accessories connect to the threshold channel

They push fit into the channel using the moulded locating ribs. You can add solvent weld if you want a permanent watertight joint.

Do I need solvent weld for every connection

No. Push fit is suitable for most installs. Use solvent weld only when you want a sealed system.

Which bottom outlet should I choose

Use 80mm for compact layouts or where an adaptor will be used. Use 110mm when you want a straightforward, high capacity connection into standard pipework.

What does the debris trap do

It collects debris before it enters the pipe, helping to keep the system clear.
